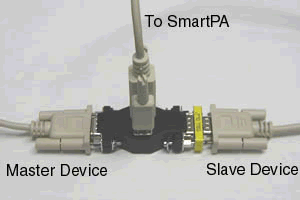

With the Serial Break Out Box feature, Smart PA can work with special sniffer cables to sniff packets. You can have 2 modes:

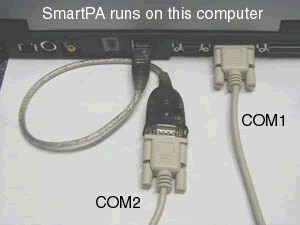

Capturing Rx on one COM port and Tx on another


Capturing Rx and Tx on the same COM port

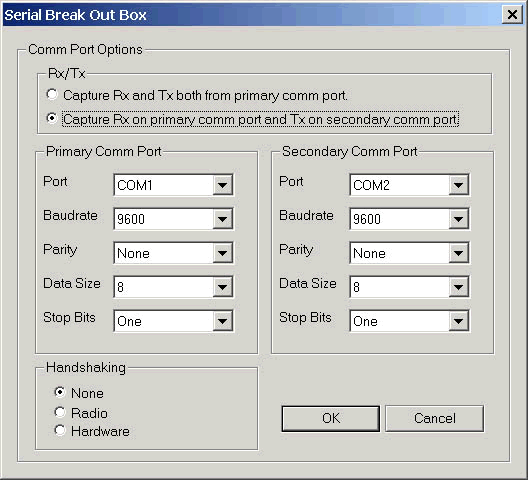

Serial Break Out Box Configuration

From the Smart PA Launcher, press the 'Break Out Box' button.



Select the mode you want

  • to sniff Rx and Tx packets from the same COM port, check the first radio button.
  • to sniff Rx on one COM port and Tx on the other COM port, check the second radio button.

    (Cables and special connectors are not included in the package)
